Ko Pneumatic Conveying System Inogona Sei Kucheka Guruva, Nguva Yekuzorora, uye Kurasika Kwezvinhu?

Abstract

Kufambisa hupfu, mapeti, uye magranules zvinonzwika zviri nyore kudzamara watarisana nemakore eguruva, machuti akavharika, kupatsanurwa, chigadzirwa chakatyoka, uye vashandisi vanochengeta nzvimbo dzekutamisa zuva rese. Yakagadzirwa zvakanakaPneumatic conveying systeminofambisa zvinhu zvakawanda kuburikidza nemapaipi akavharirwa ichishandisa mhepo inodzorwa, ichibatsira zvirimwa kuti zvigare zvakachena, zvakachengeteka, uye zvakanyanya kuenderana uku uchidzikisa mabatiro emaoko.

Gwaro iri rinopaza sarudzo dzinonyanya kukosha pakuita uye mutengo wekushandisa, kubva pavacuum vs kudzvanywa kudzikisa vs dense chikamu, kusefa, kusarudzwa kweairlock, uye pombi nzira. Inosanganisirawo rondedzero inoshanda, tafura yekuenzanisa, uye FAQ kuitira kuti ugone kubva pa "tinoda chimwe chinhu chinoshanda" kuenda kune yakajeka, ine njodzi yakaderera. Mienzaniso uye kurudziro inoratidza zvakajairika maindasitiri mamiriro uye nzira yeinjiniya inoshandiswaShandong Yinchi Environmental Protection Equipment Co., Ltd.

Zviri Mukati

• Outline
• Ndeapi Matambudziko Anoita Pneumatic Conveying Kugadzirisa
• Iyo Pneumatic Conveying System Inoshanda sei
• Vacuum Conveying vs Pressure Conveying
• Dilute Phase vs Dense Phase
• Zvikamu Zvikuru Zvinosarudza Kuvimbika
• Dhizaini Yekutarisa Usati Watenga
• Simba uye Operating Cost Levers
• Kudzora Hupfu uye Kuchengetedzwa Kufunga
• Kutumira uye Kugadzirisa Chirongwa
• Real World Use Cases
• FAQ
• Mhedziso uye Matanho Anotevera

Outline

• Ziva marwadzo ako makuru uye kuti "kubudirira" kunoratidzika sei pasi
• Nzwisisa mafambisirwo emhepo-uye-zvakaoma zvekutanga saka zvirevo zvinofananidzwa
• Sarudza iyo chaiyo yekufambisa modhi yedaro, marongero, uye mapoinzi ekutora
• Sarudza dilute kana dense chikamu chakavakirwa pane fragility yechigadzirwa uye kugona
• Kiira muzvikamu zvakavimbika zvinoenderana nemaitiro ako ekunyama
• Shandisa chinyorwa chekutarisa kuderedza njodzi usati wagadzira uye kuisa
• Ronga kudzora guruva, kushanda kwakachengeteka, uye kuchengetedza kubva pazuva rekutanga

Ndeapi Matambudziko Anoita Pneumatic Conveying Kugadzirisa

Kana iwe uchifunga aPneumatic conveying system, pamwe hausi kuzviita nekuda kwekunakidzwa. Uri kuzviita nekuti yako yazvino nzira yekufambisa iri kukudyira nguva, chigadzirwa, uye moyo murefu.

• Hupfu panzvimbo dzekutamisaiyo inopfeka midziyo, inomutsa maaramu ekuchengetedza imba, uye inogadzira mamiriro ekushanda asina kugadzikana
• Kurasikirwa kwezvinhu uye kusvibiswakubva kune maconveyor akashama, kudonhedza, kana kuchenesa nguva nenguva
• Kuvhara uye kuvharamumachutes, hoppers, uye screw feeders nekuda kwekusaenderana kuyerera
• Kusaenderana batchingkunokonzerwa nekuparadzana, kurasika, kana kusagadzikana kwekudya kwekudya
• Kunyanya kutsamira pabasauko vashandi vanofanira kupindira kuti zvinhu zvirambe zvichifamba
• Kukuvadza kwechigadzirwasenge kuputsika kwepellet, kuomeswa kwehupfu, kana kugadzirwa kwefaindi yakawandisa
• Zvipingamupinyi zvekugadzirisaapo iwe unoda kutenderera kutenderera zvivakwa, kuyambuka pasi, kana kusvika kumasilos

Pombi yakavharirwa inotakura inobatsira nekuti inodzikisa pachena nzvimbo dzekufambisa uye inofambisa zvinhu nemhepo inodzorwa uye kudzvanywa. Izvi zvinoreva kuti nzvimbo shoma dzekuti huruva dzipunyuke, nzvimbo shoma dzekuteura, uye nzvimbo shoma dzekuti “chishamiso chenguva” chokuvanda.

Iyo Pneumatic Conveying System Inoshanda sei

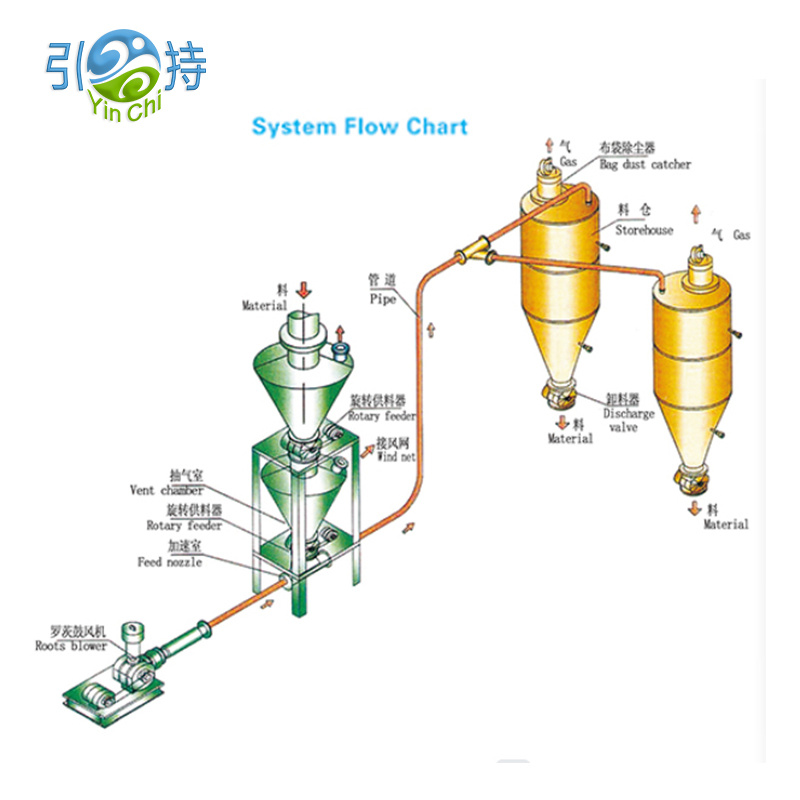

Padanho repamusoro, aPneumatic conveying systeminotakura zvinhu zvakawanda zvakasimba kuburikidza nepombi ichishandisa mutsauko wekumanikidza uye kubuda kwemhepo. Zvinhu zvinopinda mumutsara wekutakura panzvimbo yepikicha, zvinoenda kumudziyo unogamuchira, uye mhepo inoparadzaniswa kubva kune yakaoma nekusefa.

Chii chiri kuitika mukati mepombi

• Airflow inopa simba rekufambisa
• Solids inopinzwa kana kusundidzirwa pamwe chete zvichienderana neiyo nzira yekufambisa
• Velocity inofanira kunge yakakwira zvakakwana kudzivirira kugadzirisa asi kwete zvakanyanya zvekuti inoparadza chigadzirwa kana kutambisa simba
• Kubhenda, kumhanya kwenguva refu, uye kukwidziridzwa kuchinja kunowedzera kuramba uye kunokanganisa kugadzikana

Zvaunofanira kukumbira kubva kune chero dhizaini

• Kufambisa kwakagadzika pasina kuvhuvhuta, plugging, kana "kuputika" pane inogamuchira
• Inofanotaurwa mwero wekudya mukati mekuchinja, mwaka, uye zvinhu zvakawanda zvinoshanduka
• Dust-tight operation ine filtration sized for real production conditions
• Inonzwisisika kuchengetedza kuwana kupfeka mapoinzi uye mafirita

Vacuum Conveying vs Pressure Conveying

Imwe yesarudzo yekutanga ndeyekuti mutsara wako wekufambisa unofanira kudhonza zvinhu (vacuum) kana kusunda zvinhu (kumanikidza). Ose ari maviri anogona kushanda zvakanaka, asi anogadzirisa matambudziko akasiyana echirimwa.

Mutemo unoshanda wegunwe kutanga nehurongwa hwako. Kana iwe uchida kuunganidza kubva akati wandei mapoinzi uye kuendesa kunzvimbo imwechete, vacuum mhinduro dzinowanzo kurerutsa network. Kana iwe uchida kuendesa zvinhu kune silo iri kure kana akawanda mabhini, kumanikidza kuburitsa kunogona kunge kuri nani.

Dilute Phase vs Dense Phase

Apa ndipo panobudirira zvirongwa zvakawanda kana kukundikana. Zvimwe chetePneumatic conveying systeminogona kuzvibata zvakanaka nechinhu chimwe uye zvakaipa neimwe kana sarudzo yechikamu isiriyo.

Dilute phase

• Zvinhu zvinotakurwa mumhepo ine mhepo yakati wandei
• Kazhinji zviri nyore kudzora uye zvinogona kubata huwandu hwakawanda hwehupfu uye pellets
• Njodzi: Kukwirisa velocity kunogona kuwedzera kupfeka, ruzha, uye kupera kwechigadzirwa

Dense phase

• Material inofamba pazasi velocity mune imwe "slug" kana "plug" nzira
• Kazhinji inosarudzwa kune zvigadzirwa zvisina kusimba, abrasive poda, kana pakuderedza kushatisa zvinhu
• Njodzi: ingangoda kungwarira kudya, kudzora kudzvanywa, uye kugadzirisa-chaiyo tuning

Kana chirimwa chako chiine nyaya dzakaita sekuputika kwepellet, faindi dzakawandisa, kana kukukurwa kunoonekwa pamakona, dense phase (kana yakaderera-velocity strategy) inova mumiriri akakomba. Kana nyaya yako yepamusoro ichingove yakavimbika yekufambisa ine yakatwasuka kudzora, dilute chikamu chinogona kunge chiri iyo inokurumidza nzira yekudzikama.

Zvikamu Zvikuru Zvinosarudza Kuvimbika

Makotesheni anogona kutaridzika zvakafanana pabepa, asi sarudzo dzechikamu dzinoratidza kana mutengesi anonzwisisa zvinyorwa zvako. Heano zvikamu izvo zvinowanzo sarudza zuva nezuva kuita.

• Kudyisa mudziyosenge rotary airlock vharafu, venturi, kana kudzvinyirirwa chikepe chekudya, chakasarudzwa kuti chidzore kudonha uye kugadzikana solids chiyero.
• Mhepo sourcesenge blower, fan, kana compressor, yakakura kune inodiwa dzvinyiriro uye inoyerera nemuganho wekurodha sefa
• Mutsara wekufambisakusanganisira pombi dhayamita, bends, uye kupfeka zvikamu, zvakagadzirirwa kudzikamisa kudonhedza kudzvinyirira uye kudzivirira kugadzirisa
• Receiver uye kusefakusanganisira sefa nzvimbo, nzira yekuchenesa, uye guruva rinobuda, rakagadzirirwa kuenderera mberi kushanda pasina kukachidzwa
• Kudzora uye zviridzwakusanganisira ma sensors ekumanikidza, kudzvanya kwakasiyana-siyana pamasefa, uye kuvharika kunodzivirira kutiza plugging zviitiko

Kune mafekitori mazhinji, iyo airlock valve inyararire inonetsa. Kudonha kwakanyanya kunoreva kufambisa kusingagadzike, kupatsanurwa kwakashata, uye huruva isingatarisirwi. Kunyanya kuomesesa kana kusanyatsoenderana kubvumidzwa kunogona kugadzira kupisa, kusunga, uye kumira kazhinji. Nyanisa iyo airlock kune yako particle size, tembiricha, abrasiveness, uye inodiwa yekuisa chisimbiso.

Dhizaini Yekutarisa Usati Watenga

Shandisa iyi yekutarisa kuenzanisa zvikumbiro uye kuderedza zvisingafadzi zvinoshamisa mushure mekuiswa. Chinangwa hachisi kukwana, kudzora njodzi.

• Material profilezvinosanganisira kuwanda kwehuwandu, huwandu hwesaizi, hunyoro hwekunzwa, kunamira, abrasiveness, uye tembiricha
• Zvinangwa zvekugonakusanganisira mwero weavhareji, mwero wepamusoro, uye kangani mapeaks anoitika
• Distance uye nzirakusanganisira hurefu hwakaenzana hwakaenzana, nhamba yemabhenji, vertical lifts, uye mapoinzi ekutsigira aripo
• Pickup uye discharge pointskusanganisira kuti mangani masosi uye kwaunoda iwe ikozvino uye mukati memakore maviri
• Utsanana mwerokusanganisira kuti yakawanda sei huruva inogamuchirwa kutenderedza mugamuchiri uye kuti imba inotaridzika sei nhasi
• Simba uye zvinoshandiswakusanganisira kuwanikwa kwemagetsi simba uye kana mhepo yakamanikidzwa yakagadzikana uye yakaoma
• Wear managementkusanganisira bend style, zvinogadziriswa zvipfeko zvikamu, uye kuwana kwekuongorora
• Maintenance accesskusanganisira sefa yekuchinja nzvimbo, airlock service clearance, uye nzvimbo dzakachengeteka dzekuzviparadzanisa nevamwe
• Kutuma chirongwakusanganisira bvunzo inomhanya nezvinhu zvako chaizvo, kwete chete ne "zvakajairika" samples

Kana chikumbiro chichidzivirira nyaya idzi kana kudzipindura zvisina tsarukano, harisi "rakanaka-kuve-" gap. Ndiko kunobva nguva yako yekuzorora kubva gare gare.

Simba uye Operating Cost Levers

Mutengo wekushandisa hausi wekukura kwemota chete. Izvo ndezvekuti iyo sisitimu inogona kufambisa zvinhu pane yakaderera yakagadzikana velocity uye kumanikidza kune ako chaiwo mamiriro.

• Pipe dhayamita kusarudzwakunokanganisa velocity uye pressure inodonha zvakanyanya
• Routing disciplinezvakadai semakona mashoma anopinza anoderedza mhirizhonga uye kupfeka
• Airflow controlinobatsira kudzivirira kuvhuvhuta zvakanyanya kuti "uve wakachengeteka"
• Sefa saiziinodzivirira kudzvinyirirwa kwepamusoro-soro kunomanikidza sosi yemhepo kushanda nesimba
• Leak managementpaairlocks uye zvinongedzo zvinoderedza mhepo yakarasika uye kuyerera kusina kugadzikana

Mari yakajairika yakavanzika iri kumhanya nemhepo yakawandisa nekuti sisitimu iri pasi-inoshandiswa. Nekudzvanywa kuri nani uye kutarisisa kwesefa, vashandisi vanogona kuvimba nemaitiro, kwete masikirwo avo, uye unogona kuchengeta mutsetse muhwindo rakagadzikana, rinoshanda.

Kudzora Hupfu uye Kuchengetedzwa Kufunga

Guruva haisi nyaya yehutsanana chete. Zvimedu zvakanaka zvinogona kufambiswa nemhepo zviri nyore, kutamira mumabhengi uye makabati emagetsi, uye kugadzira nzvimbo dzekushanda dzisina kugadzikana. Yakavharirwa kuendesa inoderedza huwandu hweakavhurika ekufambisa mapoinzi, asi kutonga kweguruva kuchiri kunoenderana nekugamuchira kwakanaka uye kusefa.

Matanho anoshanda anoita mutsauko unooneka

• Shandisa inogamuchira ine yakakwana sefa nzvimbo kuitira kuti kusefa kurambe kwakagadzikana mukati menguva refu
• Sarudza sefa yekuchenesa nzira inoenderana nebasa rako kutenderera uye guruva maitiro
• Ronga kubuda kweguruva kuitira kuti mafaindi asapindezve munzvimbo yebasa panguva yekubvisa
• Chisimbiso chinongedzo uye chengetedza gaskets kuchengetedza system yakavharirwa zvechokwadi
• Chengetedza zviteshi zvekuongorora zvinosvikirika kuitira kuti "nyaya diki" dzisaite mapulagi akaerekana

Kana zvinhu zvako zvichibvira kana kuti zvakanyanyisa, kurukurai nezvekuchengetedzwa kwechirimwa pakutanga kweprojekti. Huinjiniya hwakanaka hunoshanda: hunotora shanduko yepasirese chaiyo uye inovaka mumatanho ekudzivirira pane kuvimba nemaitiro emushandisi akakwana.

Kutumira uye Kugadzirisa Chirongwa

A Pneumatic conveying systemhazvifanirwe kuda magamba. Nzira iri nyore yekuita izvozvo ndeye kubata kutumwa sechikamu chedhizaini, kwete yekuzofunga.

• Baseline testnezvinhu zvako chaizvo patembiricha inotarisirwa uye mwando
• Velocity verificationkuratidza kuti uri pamusoro pekugadzirisa miganhu pasina kuwedzera-kukurumidza
• Sefa kurodha kutariswakusimbisa kutenderera kwekuchenesa kunochengetedza kusiyana kwakagadzikana
• Pfeka chirongwa chekuongororakune mabhenji uye nzvimbo dzakanyanya-kukanganisa panguva dzakatsanangurwa dzenguva yekumhanya
• Spare parts strategyinotarisa pazvisimbiso zveairlock, mafirita zvinhu, uye zvikamu zvekupfeka

Mazhinji "matambudziko asinganzwisisike" anoratidza semapeteni mukumanikidza, kusefa kusiyanisa kudzvanywa, uye mota mutoro. Zviridzwa hazvidi kuve zvakanakisa, zvinoda kuiswa zvine hungwaru uye kunyatso shandiswa.

Real World Use Cases

Heano mamiriro akajairwa apo zvidyarwa zvinosarudza pneumatic kuburitsa uye izvo zvavanowanzo gadziridza.

• Kuendesa hupfu kune vanosanganisainoisa pamberi pekutakura guruva uye inowirirana chikafu kuchengetedza batch mhando
• Pellet inoendesa kune silosinokoshesa kubata zvinyoro uye mabhendi asingapfekere kuderedza faindi
• Mabhegi ekurasira zviteshikoshesa kubviswa kweguruva munharaunda uye kugamuchira kwakachena kuchengetedza vashandisi
• Multiple pickups mune imwe process lineinoisa pamberi yakatsiga yekuchinja logic uye kuenzanisa kuyamwa

The common thread is control of variability. Kuchinja kwezvinhu. Ambient humidity inoshanduka. Vashandi vanochinja. Iyo sisitimu inofanirwa kuramba ichiendesa kuyerera kwakadzikama pasina kuda kuramba kupindira kwemanyorero.

FAQ

Q1. Ndeupi ruzivo rwandinofanira kugadzirira ndisati ndakumbira chikumbiro

Ipa zita rako rezvinhu, huwandu hwehuwandu hwehuwandu, huwandu hwesaizi, hunyoro hwekunzwa, tembiricha, huwandu hwaunoda, madaro, nhamba yemabhendi, uye pikicha uye yekuburitsa mapoinzi. Kana iwe uine mafoto eazvino ekuchinjisa mapoinzi uye yakatenderedza guruva mamiriro, izvo zvinobatsira mainjiniya kugadzira kwechokwadi kwete fungidziro.

Q2. Ko iyo pneumatic system inokuvadza pellets isina kusimba kana magranules

Inogona kana velocity yakanyanyisa kana mabhenji asina kusarudzwa zvakanaka. Ndicho chikonzero sarudzo yechikamu, nzira, uye bend dhizaini zvine basa. Kana kutendeseka kwechigadzirwa kuchikosha, nzira dzepasi-velocity uye kupfeka-inodzorwa nzira inogona kuderedza zvakanyanya kupera.

Q3. Sei mamwe masisitimu achivhara kunyangwe mota ine simba

Kuvhara kunowanzo kukonzerwa nekusagadzikana kwekudya, kubhenda kwakawanda kwakapinza, chiyero chisina kunaka chemhepo-kune-zvakaoma, kunamatira kunofambiswa nemwando, kana kusefa kurambidzwa kunoshandura mafambiro emhepo panguva yekushanda. Simba rakawanda haringogadziriki kuburitsa kwakagadzikana.

Q4. Ndoita sei kuti ndideredze huruva yakatenderedza mugamuchiri

Tarisa pane inogamuchira filtration nzvimbo, yakakodzera kucheneswa kwesefa, yakavharwa yekubatanidza, uye inodzorwa nzira yekuburitsa yefaindi dzakabatwa. Nyaya dzeguruva dzinowanzobva mukusefa kwepasi kana kusasimwa zvisina kunaka kwete kubva ku "pneumatic conveying" pachayo.

Q5. Imwe system inogona kubata akawanda zvinhu

Dzimwe nguva, asi zvinoenderana nekuti izvo zvinhu zvakasiyana sei mukuwanda, saizi yechikamu, uye mafambiro ekuyerera. Kana iwe uchifanira kubata zvinhu zvakawanda, bvunza dhizaini inotsanangura yakagadzika mahwindo ekushanda uye inosanganisira inoshanda shanduko uye matanho ekuchenesa.

Mhedziso uye Matanho Anotevera

A Pneumatic conveying systemhaisi yekutenga saizi imwe chete, idanho rekuita. Kana chikamu, sosi yemhepo, nzira yekudyisa, nzira, uye kusefa zvichifananidzwa nechinhu chako uye dhizaini, iwe unowana hutsanana pasi, kushomeka kwekukanganisa, uye kugadzirwa kunofungidzirwa. Kana vasipo, iwe unowana guruva, plugs, uye system iyo munhu wese anodzivirira.

Kana iwe uchida dhizaini inoenderana nemamiriro ako echirimwa uye maitiro enyama,Shandong Yinchi Environmental Protection Equipment Co., Ltd.inogona kukubatsira kutsanangura kutsanangurwa kwakajeka, enzanisa nzira dzekufambisa, uye kuvaka hurongwa hunoshanda hwekuisa nekushanda. Wakagadzirira kuderedza guruva uye kudzikamisa mapoinzi ekutamisa? taura nesukukurukura nezvechikumbiro chako uye uwane mhinduro yakaenderana.
